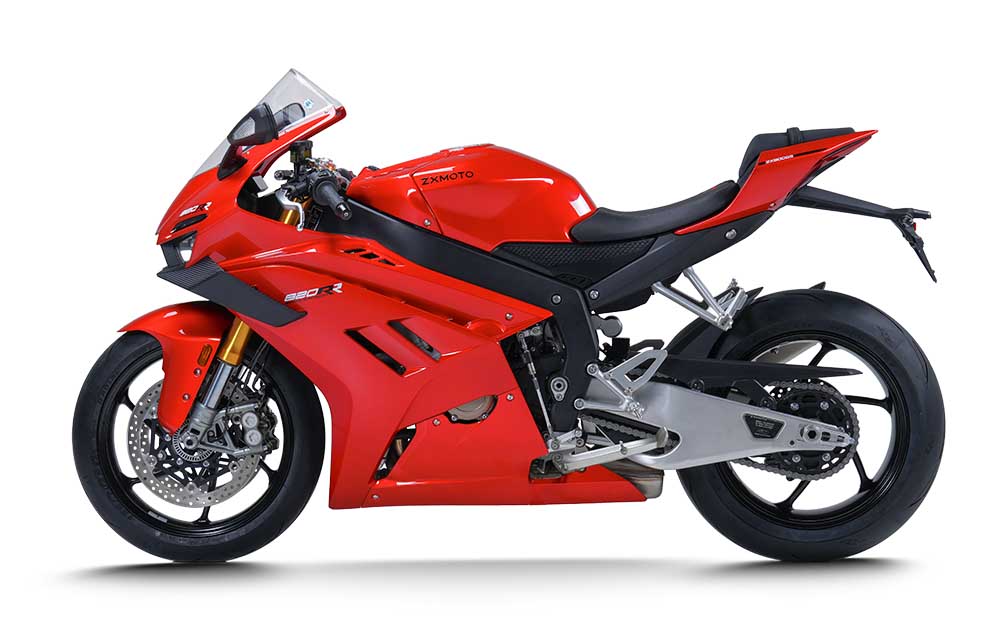

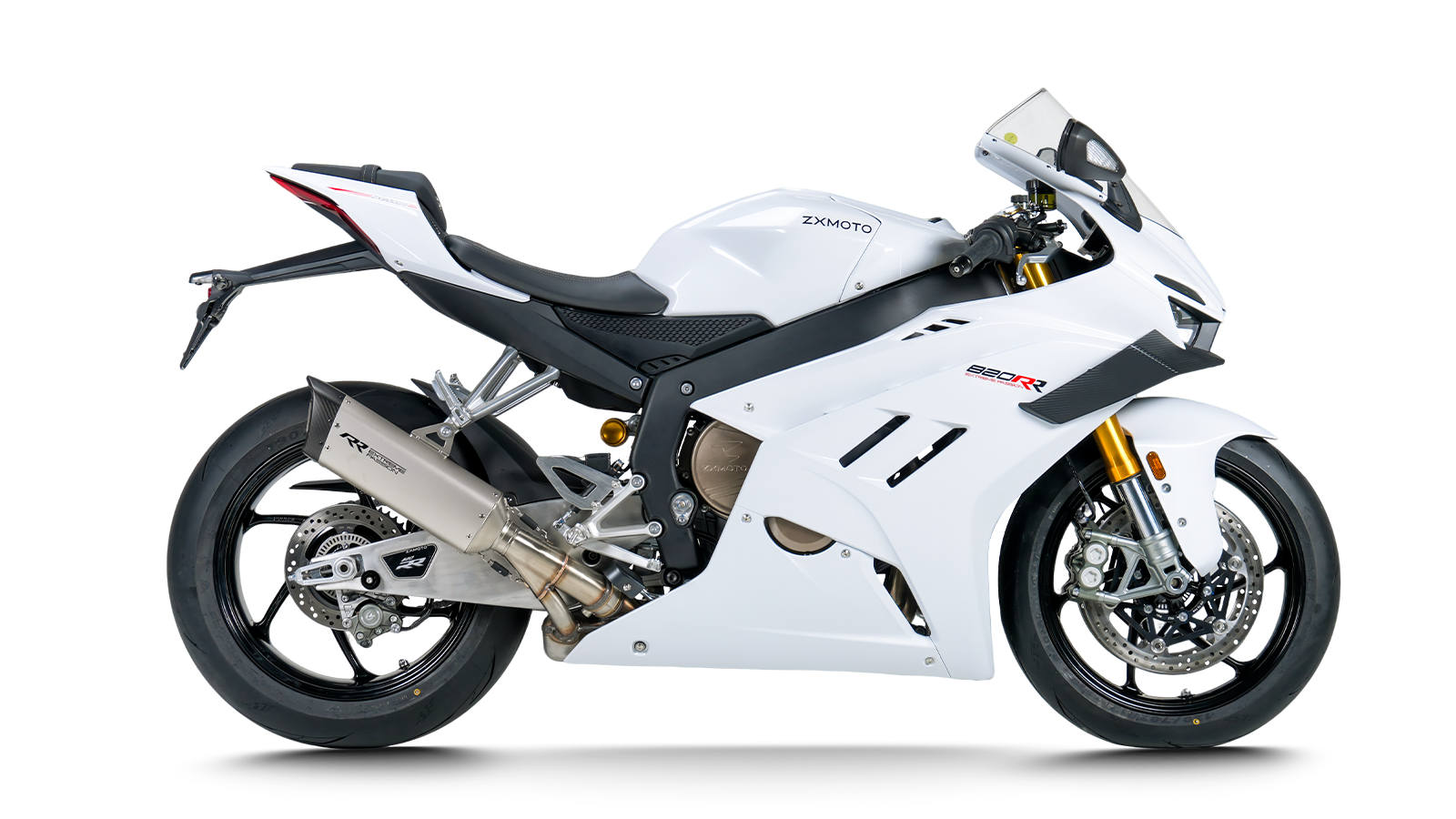

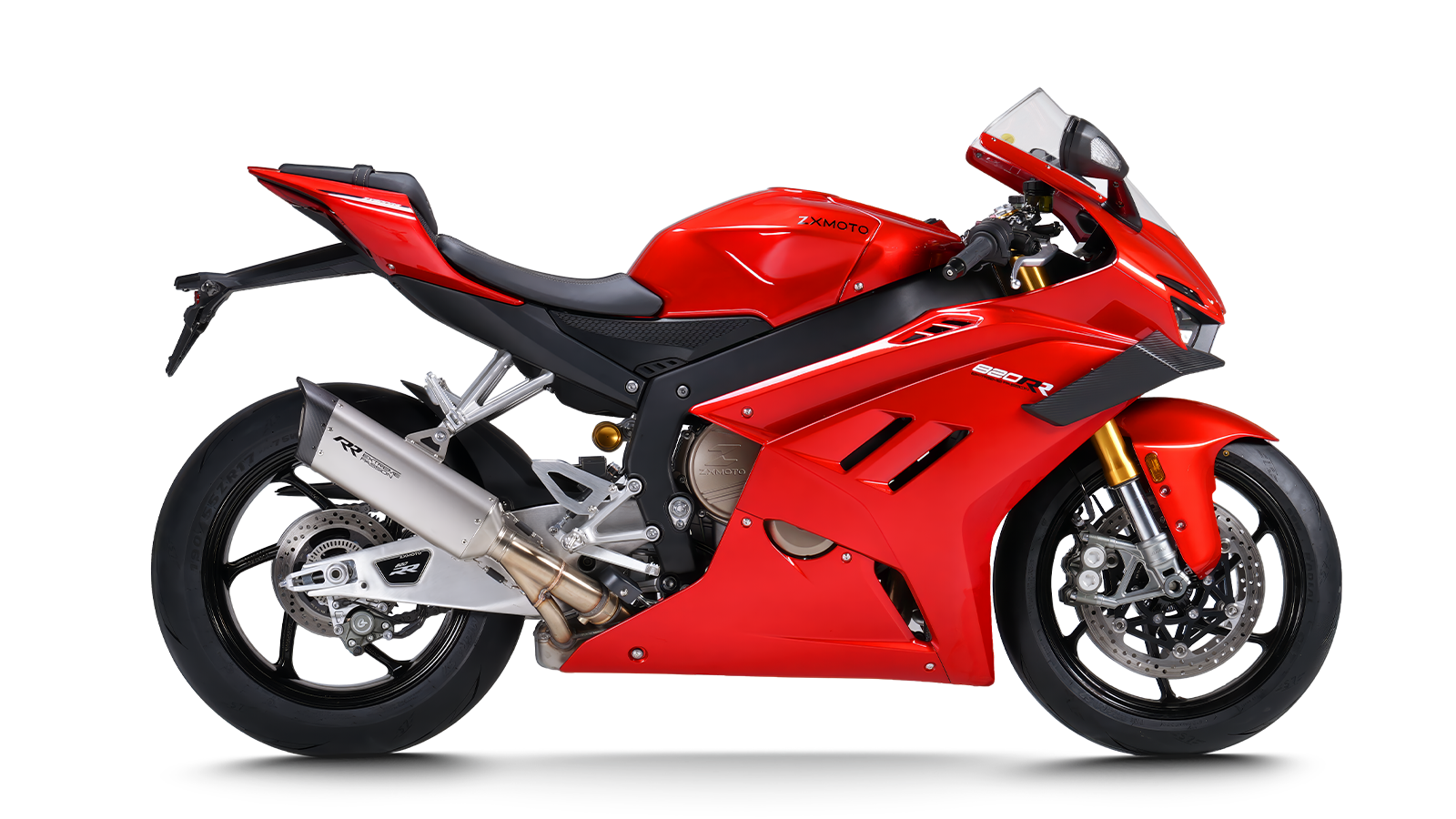

820RR
  • 820RR
  • 820RR
  • 820RR

COLOR

  • red
  • black
  • white
818

Displacement(cc)

99/12000

Max. Power(kW/rpm)

80/9500

Max. Torque(N.m/rpm)

193

Curb Weight(kg)

SPECS
  • 820RR
  • ENGINE
  • CHASSIS
  • DIMENSIONS
  • Engine Type Three-cylinder,DOHC,12-valve,Oil&liquid-cooled
  • Displacement 818.8 cc
  • Bore × Stroke 80 × 54.3 mm
  • Maximum Power 99kW @ 12000 rpm
  • Maximum Torque 80 N·m @ 9500 rpm
  • Compression Ratio 13:1
  • Clutch Type Wet multi-plate slipper clutch
  • Fuel delivery BOSCH EFI
  • Throthle Electronic Throttle
  • Front Suspension Fully adjustable preload and damping
  • Rear Suspension Central monoshock, fully adjustable preload and damping
  • Trail 102.2/104.2 mm
  • Front Brake 320mm dual floating disc, 4-Piston opposed caliper (TAISKO™), Radial Separate-type Brake Master Cylinder
  • Rear Brake 220mm fixed brake disc, 2-piston opposed caliper (TAISKO™)
  • Front Tire CST™ S7 120/70 ZR17
  • Rear Tire CST™ S7 190/55 ZR17
  • Rim Aluminum alloy cast front MT3.5×17 rear MT6.0×17
  • Length x Width x Height 2050 × 745 × 1160 mm
  • Wheelbase 1419.5 - 1423 mm
  • Seat Height 825 mm
  • Curb Weight 193 kg
  • Fuel Capacity 18 L
  • Steering Angle 26°
  • 24.2° / 24.6° Rake Angle
820RR
820RR
820RR
820RR
PREV
NEXT

* ZXMOTO models may have different specifications to comply with local regulations, and may be modified to meet specific demands in a particular region.

AABSOLUTE PRACTICAL PERFORMER
AABSOLUTE PRACTICAL PERFORMER
  • The 820RR race bike has shown dominant performance in the 2026 WorldSBK season, securing 5 first-place finishes and 2 fastest lap in the WSSP class so far, ranking 3rd in the manufacturer standings. For more details, please follow ZXMOTO FACTORY EVANBROS RACING.

AABSOLUTE PRACTICAL PERFORMER
TRIPLE FORECE·DOUBLE DOMINATION
TRIPLE FORECE·DOUBLE DOMINATION

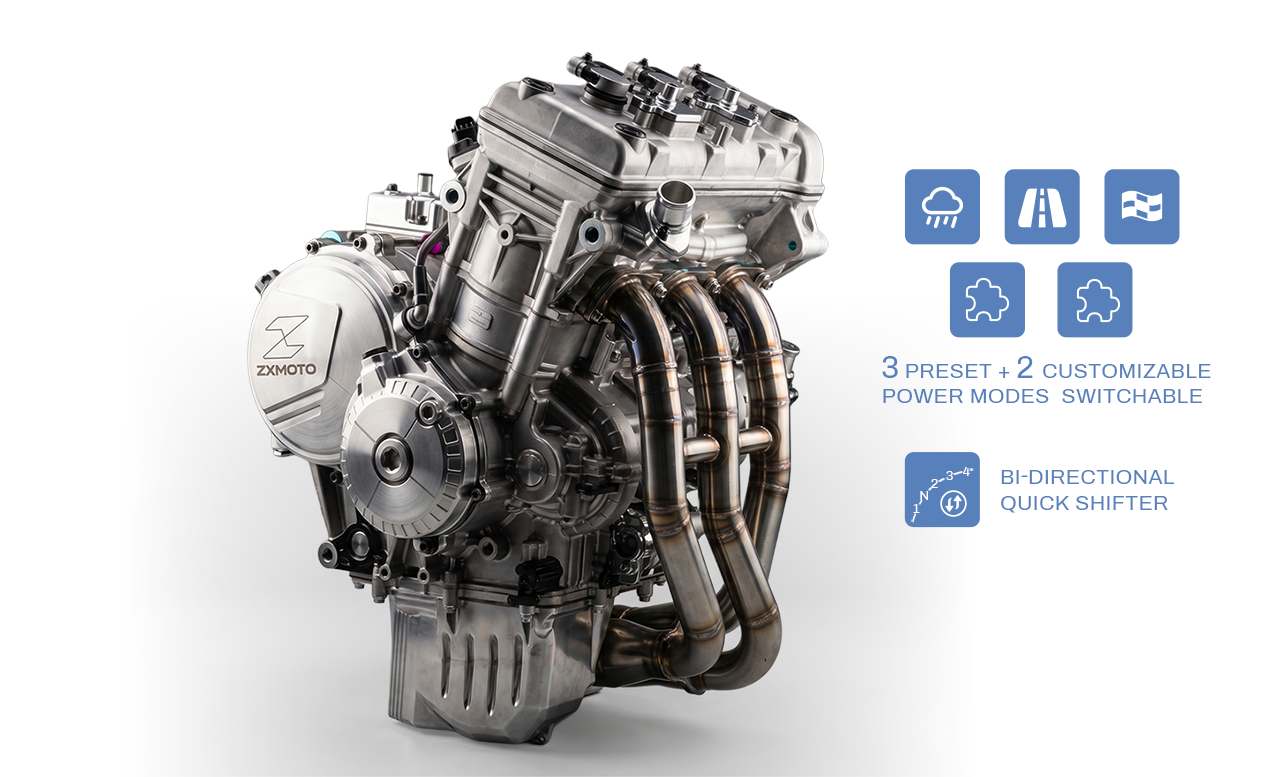

  • The in-house developed inline 3-cylinder 12-valve engine of ZXMOTO delivers 135 horsepower at 12,000 rpm, with a 0-100 km/h acceleration of merely 2.81 seconds. Matched with the multi-calibrated BOSCH electronic throttle system, it achieves ultra-sensitive and ultra-precise power response. To tame this high-performance powertrain, the 820RR is equipped with dual cooling systems (oil cooling & liquid cooling), guaranteeing outstanding stability during aggressive power output.

TRIPLE FORECE·DOUBLE DOMINATION
PRO AS IT LOOKS, AGILE AS IT RIDES
PRO AS IT LOOKS, AGILE AS IT RIDES

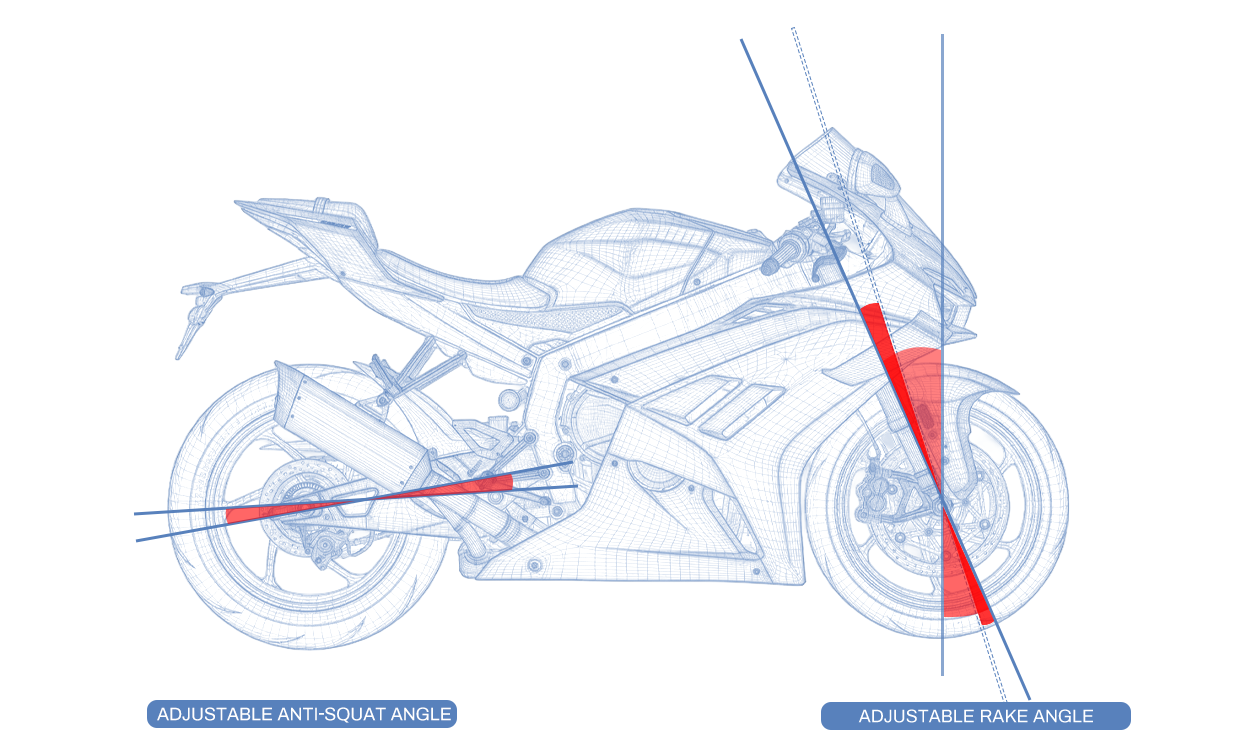

  • The 820RR innovatively adopts an adjustable rake angle and anti-squat angle design. Riders can make personalized adjustments according to riding scenarios to acquire the most ergonomic riding posture. Lightweight engineering reaches new heights once again: fully cast aluminum frame, aluminum exhaust system, aluminum swingarm, and extensive magnesium alloy components. Beyond that, the 820RR integrates sophisticated lightweight optimization into numerous detail designs. It boasts a curb weight of only 193kg and superior unsprung mass performance, delivering a wind-slicing riding experience on every journey.

PRO AS IT LOOKS, AGILE AS IT RIDES
DETAILS
820RR

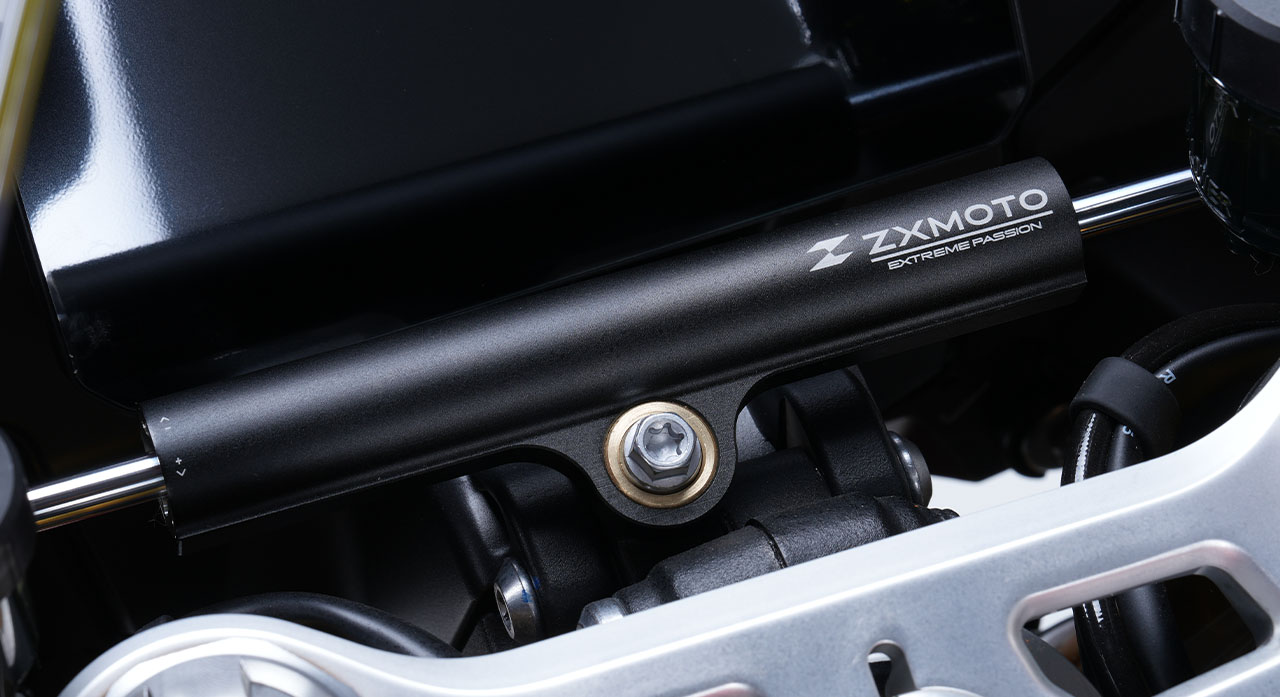

Integrated Steering Damper
820RR

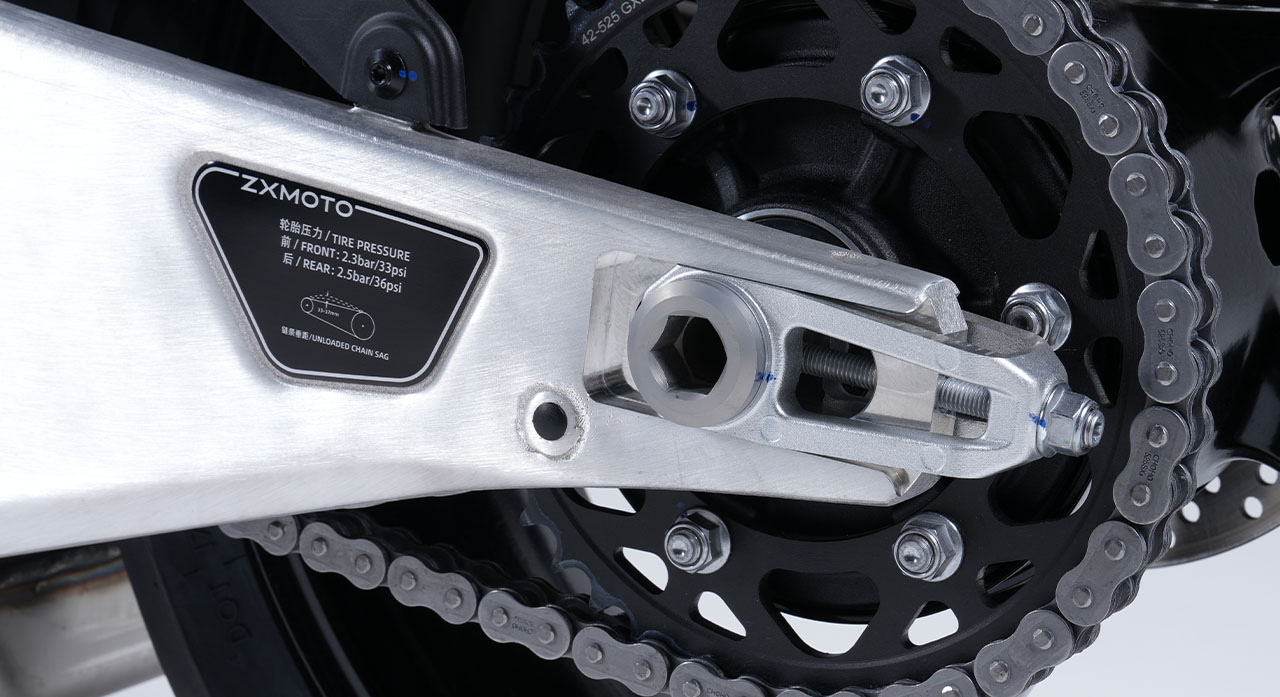

Quick-release Rear Wheel Design
820RR

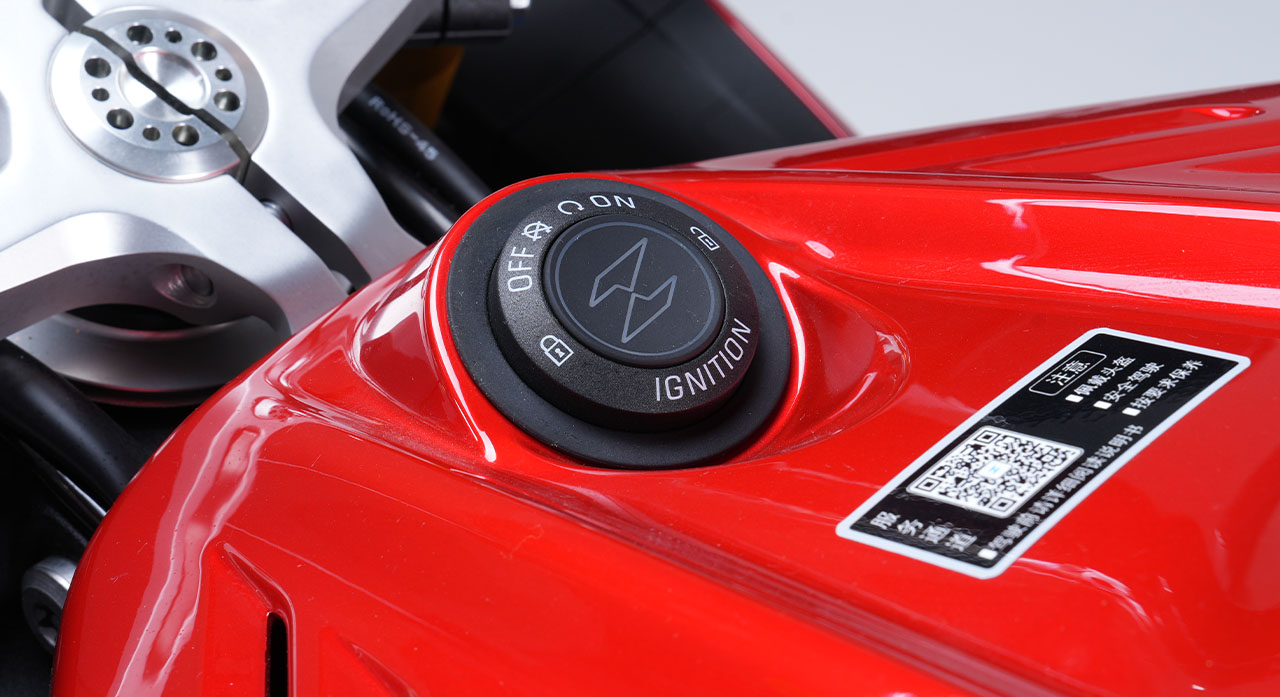

Keyless Inductive Ignition Key
820RR

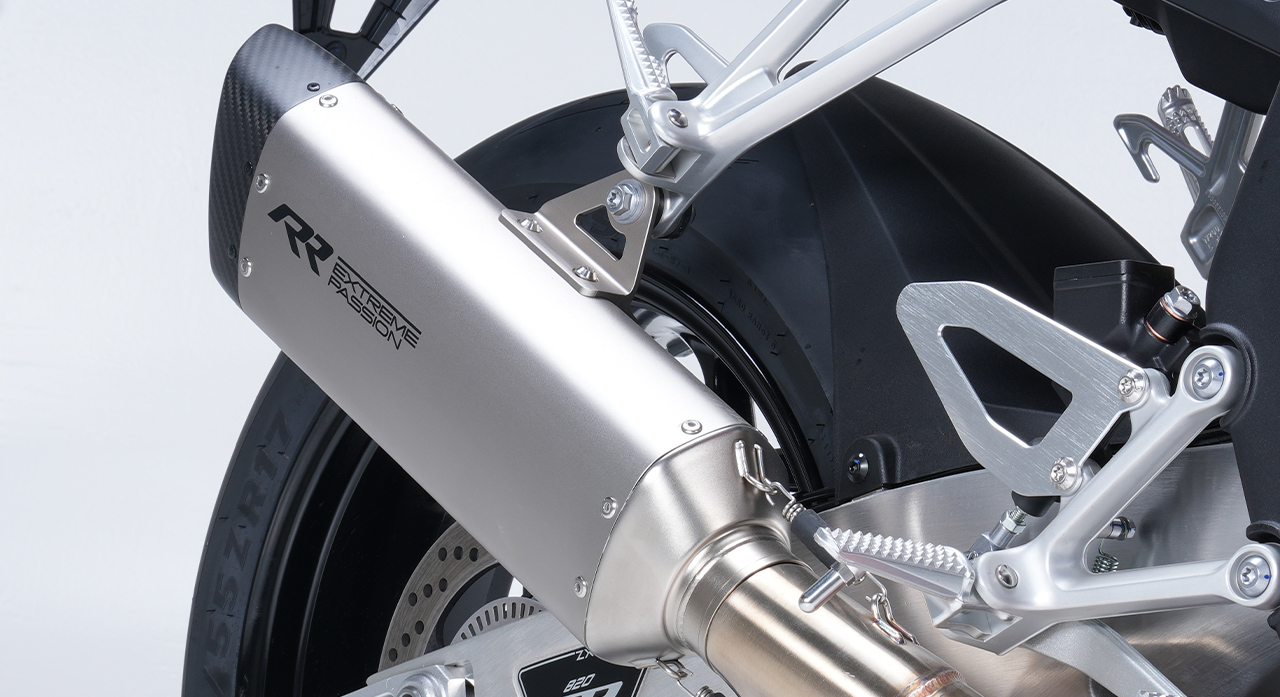

Aluminum Alloy & Carbon Fiber Muffler
820RR

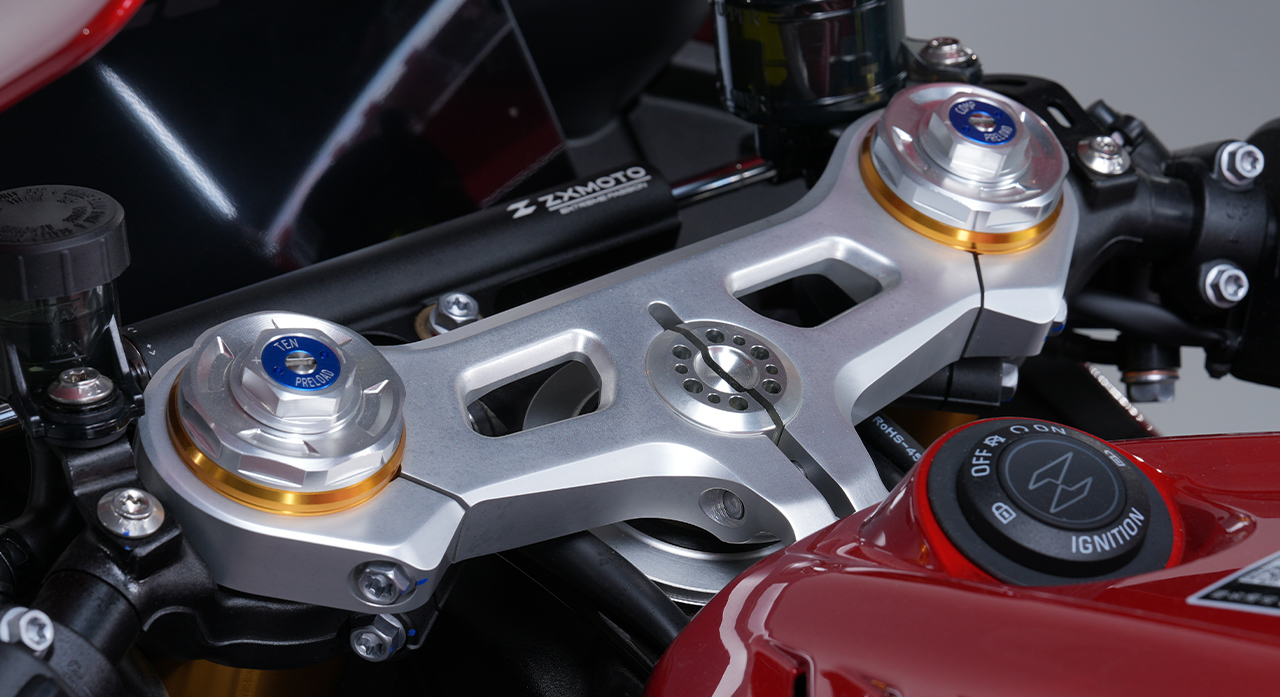

Fully Adjustable Suspension/Forge Aluminum Triple Clamp
820RR

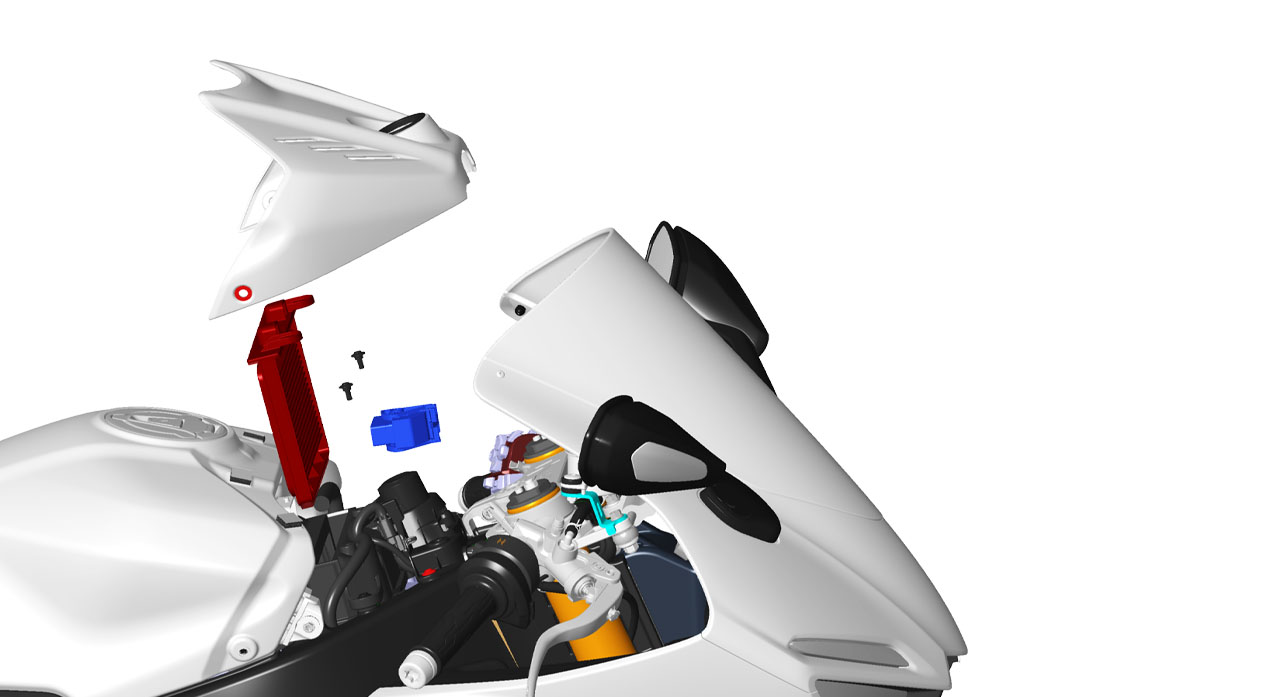

Quick-replace Air Filter Design
820RR

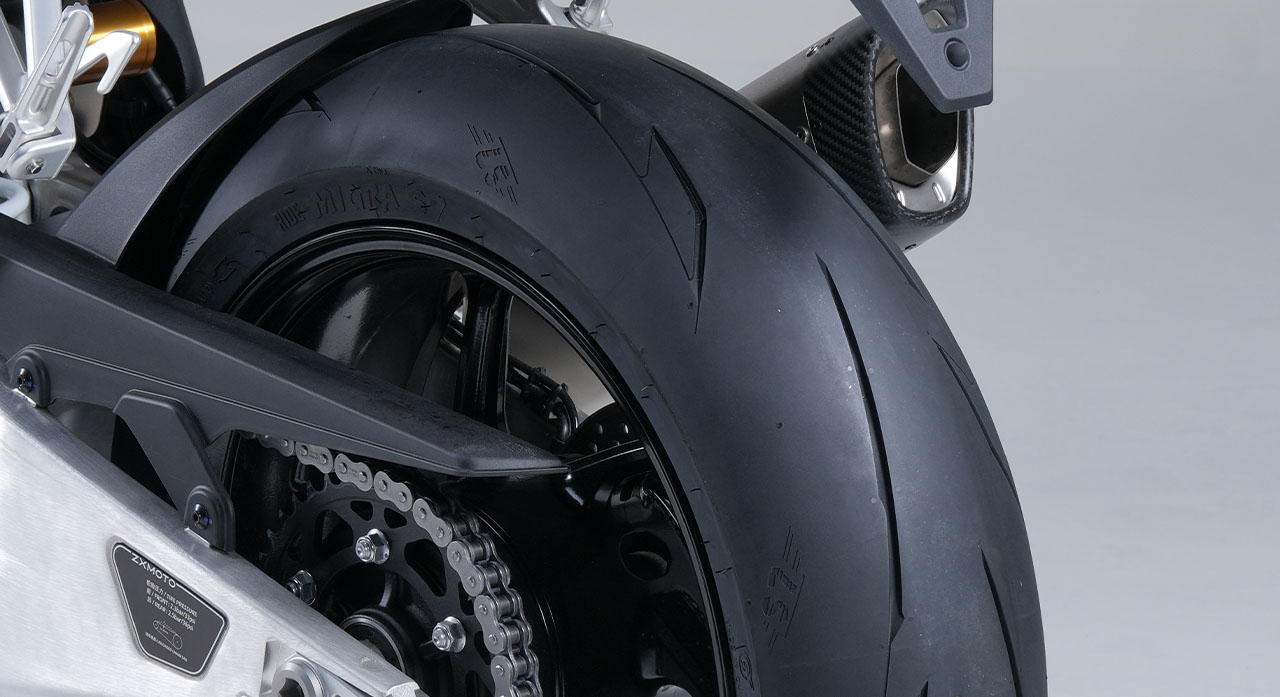

Maxxis S7 Semi-slick Tire
820RR

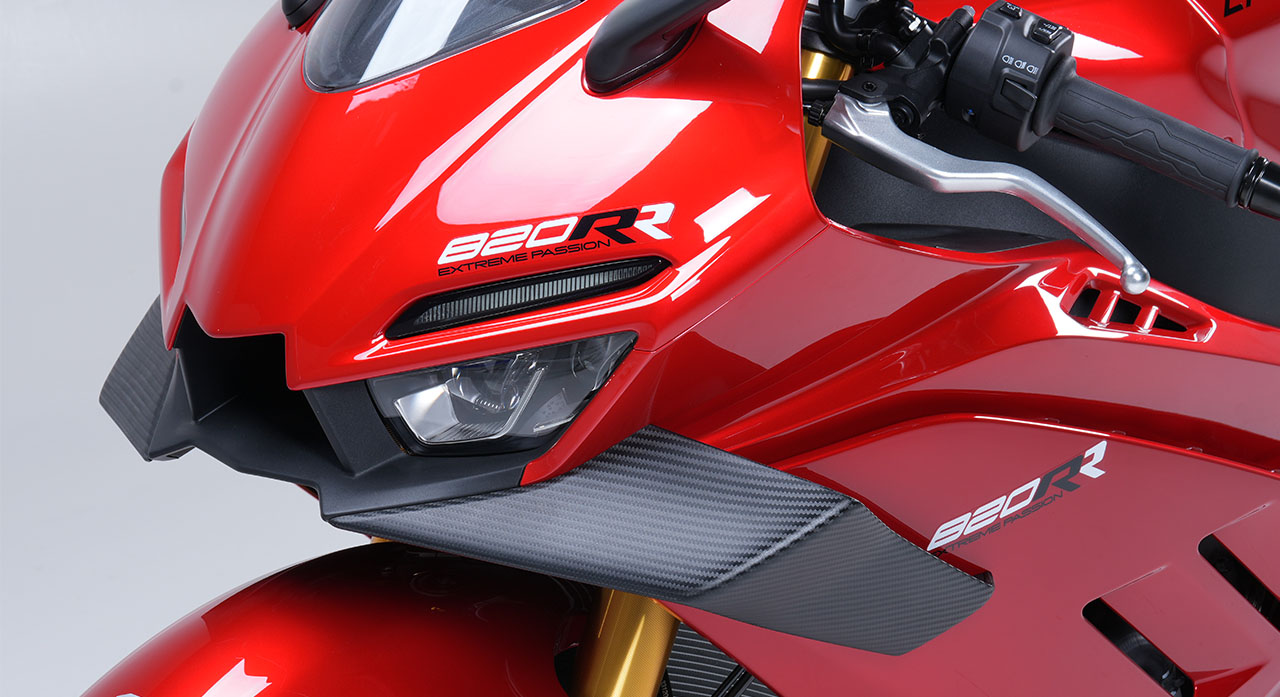

Front Ram Air Intake System
820RR

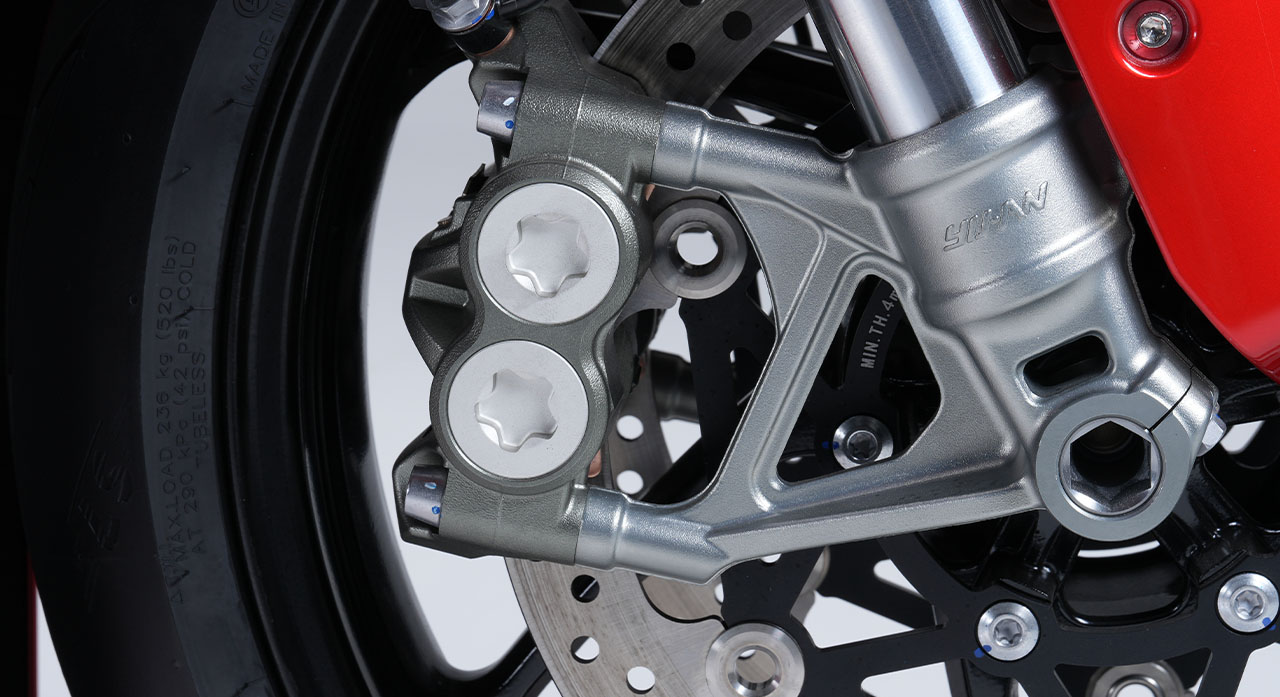

Four-piston Radial Caliper
820RR
Exhaust Control Valve System
