COLOR

  • white
  • black
  • red
470

Displacement(cc)

62/13500

Max.Power(kW/rpm)

46/11500

Max.Torque(N.m/rpm)

168

Curb Weight(kg)

SPECS
  • 500RR
  • ENGINE
  • CHASSIS
  • DIMENSIONS
  • Engine type 4 inline-cylinder,DOHC,16-valve,liquid-cooled
  • Max. Power/rpm(kW/rpm) 62/13500
  • Max.Torque/rpm(N.m/rpm) 46/11500
  • Displacement(cc) 470
  • Bore × Stroke (mm) 59×43
  • Compression Ratio 12.9:1
  • Fuel delivery BOSCH EFI
  • Wet multi-plate slipper clutch Clutch Type
  • Frame Integrated Steel Trellis Diamond Frame
  • Rear swing arm Single-sided swing arm(aluminum alloy)
  • Front suspension Inverted φ 41mm, fully adjustable preload and damping
  • Tire CST S5
  • Front wheel size 120/70 ZR17
  • Rear wheel size 180/55 ZR17
  • Rim Aluminum alloy cast front MT3.5*17 rear MT5.5*17
  • Front caliper 4-Piston opposed caliper(TAISKO)
  • Front disc 300mm dual floating disc
  • Rear caliper 2-piston opposed calipper(TAISKO)
  • Rear disc 240mm single disc
  • Length×Width×Height(mm) 2005x705x1125
  • Wheelbase(mm) 1395
  • Seat height(mm) 800
  • Fuel capacity(L) 15
  • Curb weight(kg) 168
  • Net weight(kg) 158
  • Steering angle(°) 25
  • Rake Angle(°) 24.5
500RR
500RR
500RR
500RR
PREV
NEXT

* ZXMOTO models may have different specifications to comply with local regulations, and may be modified to meet specific demands in a particular region.

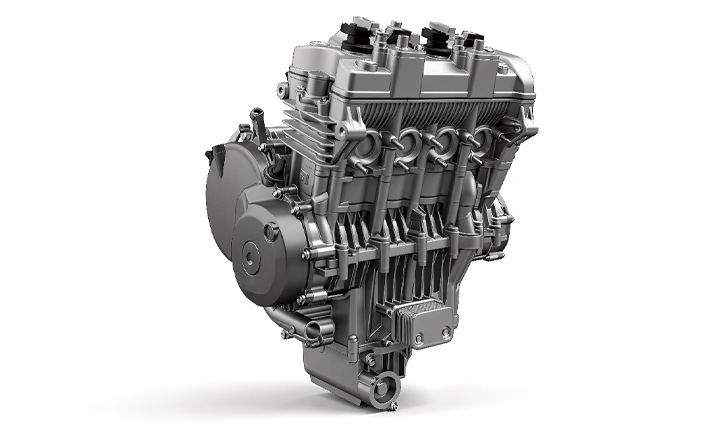

Powertrain: High-Revving Inline-4 Engine
Powertrain: High-Revving Inline-4 Engine
  • 470cc inline-4 cylinder, DOHC, 16-valve, liquid-cooled engine with a 12.9:1 compression ratio.

  • Delivers maximum power of 62 kW (84 hp) @ 13,500 rpm and maximum torque of 46 N·m @ 11,500 rpm.

  • Equipped with a BOSCH EFI system and a wet multi-plate slipper clutch for smooth and responsive gear shifts.

  • Top speed of 235 km/h, with strong power output across the rev range, making it suitable for both track and street riding.

Powertrain: High-Revving Inline-4 Engine
Performance: Track-Proven Excellence
Performance: Track-Proven Excellence
  • 0-100 km/h acceleration in just 3.4 seconds, competing with 600cc-class sport bikes.

  • Outstanding braking performance: best braking distance of 37 meters.

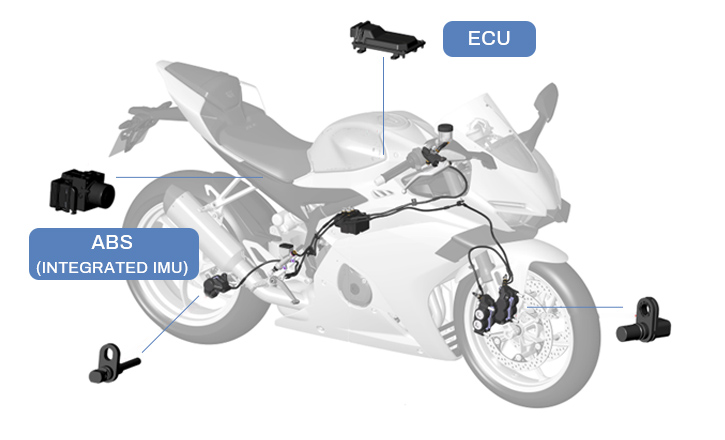

  • Features cornering ABS with a 6-axis IMU for enhanced stability and safety during aggressive riding.

  • Fully adjustable front and rear suspension, paired with high-grip CST S5 semi-slick tires, ensures excellent cornering grip and handling feedback.

Performance: Track-Proven Excellence

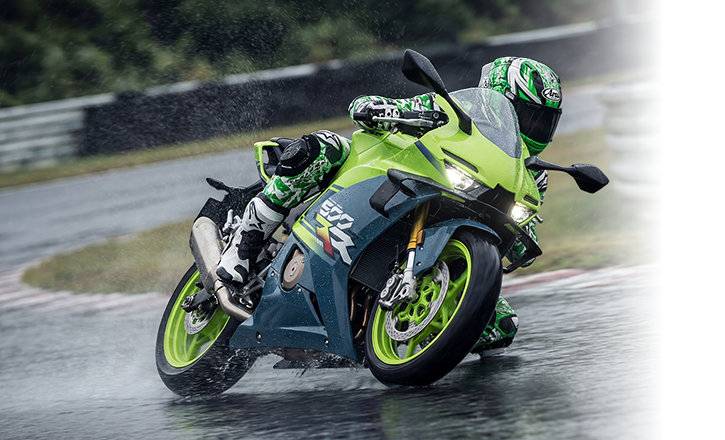

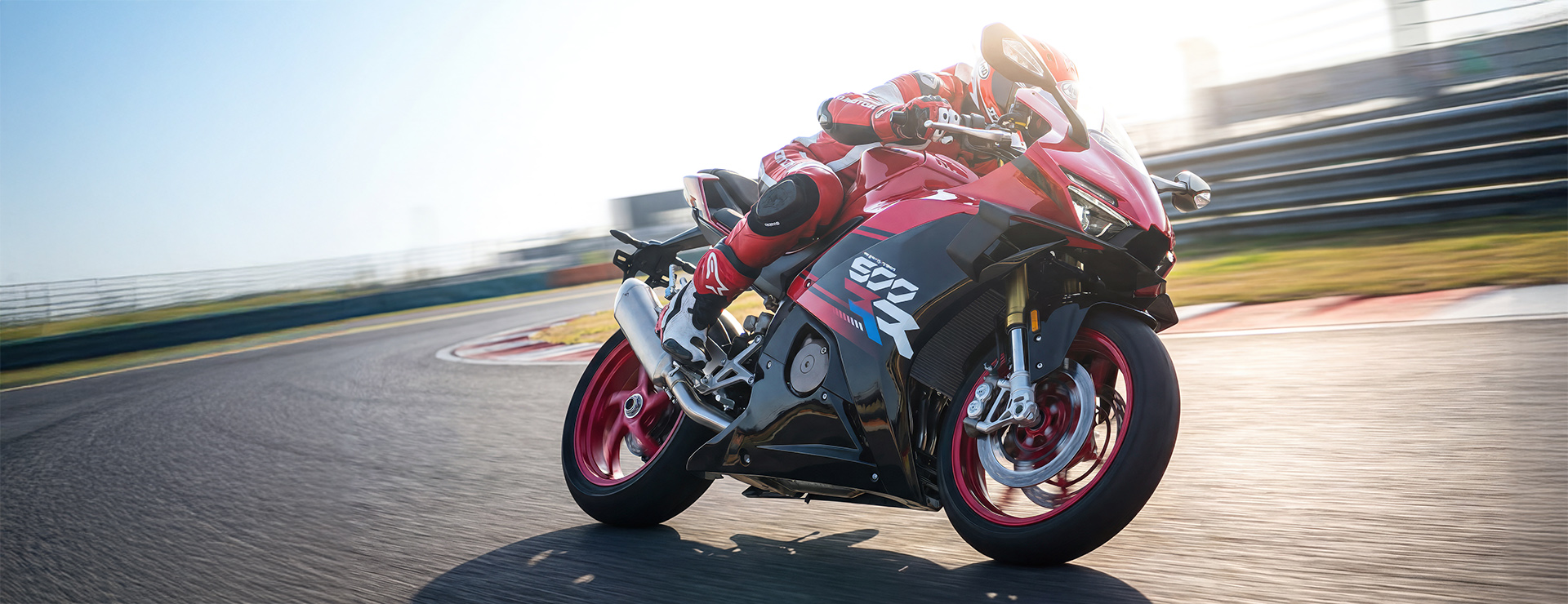

Design Philosophy: Lightweight and Agile
Design Philosophy: Lightweight and Agile
  • Curb weight of only 168 kg, with aluminum swingarm and forged footpegs for reduced unsprung weight.

  • Compact dimensions (2005×705×1125 mm) and a 1395 mm wheelbase, combined with an 800 mm seat height, offer an ideal riding position for agility and control.

  • Split-style handlebars and optional single-sided swingarm design improve mass centralization and handling precision.

  • Adjustable rake and anti-squat angles allow riders to fine-tune geometry for varying riding conditions.

Design Philosophy: Lightweight and Agile
DETAILS
500RR

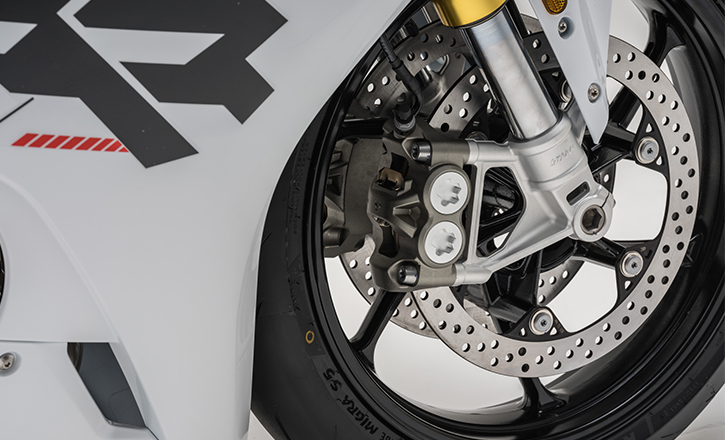

Dual 300mm floating front discs with 4-piston opposed calipers and direct-push master cylinder; 240mm rear disc with 2-piston caliper.
500RR

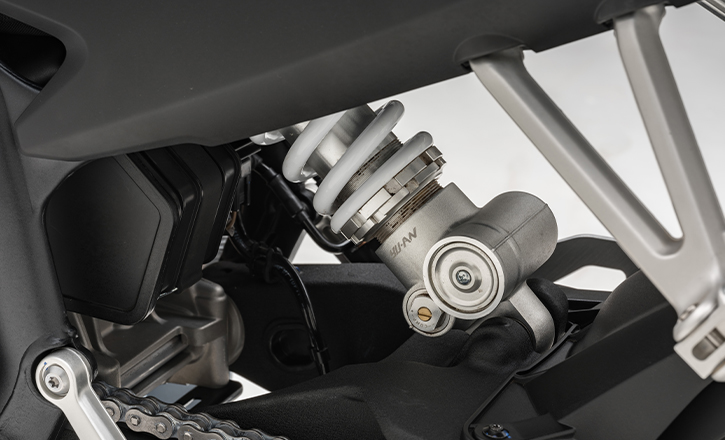

41mm interved fully adjustable front fork; centrally mounted fully adjustable rear monoshock.
500RR

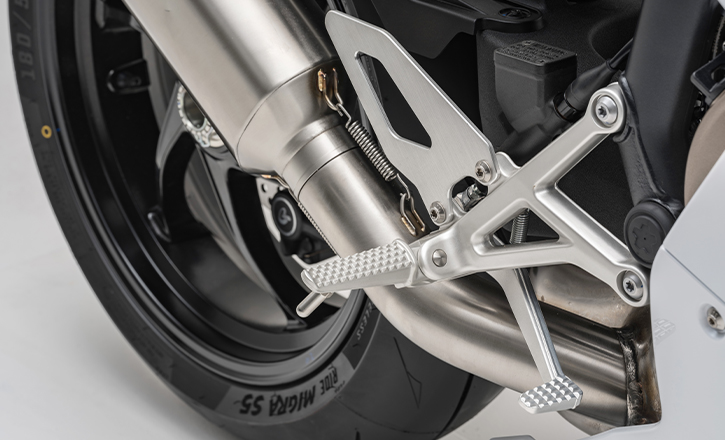

CNC-Machined Forged Aluminum Alloy Footpegs.
500RR

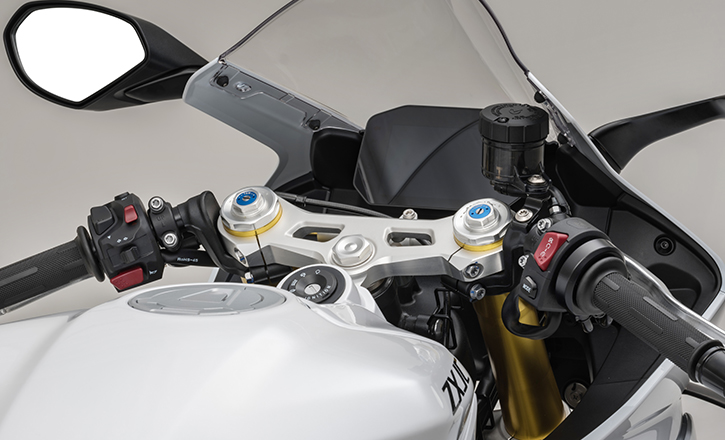

Forged Aluminum Alloy Steering Stem Yoke
500RR

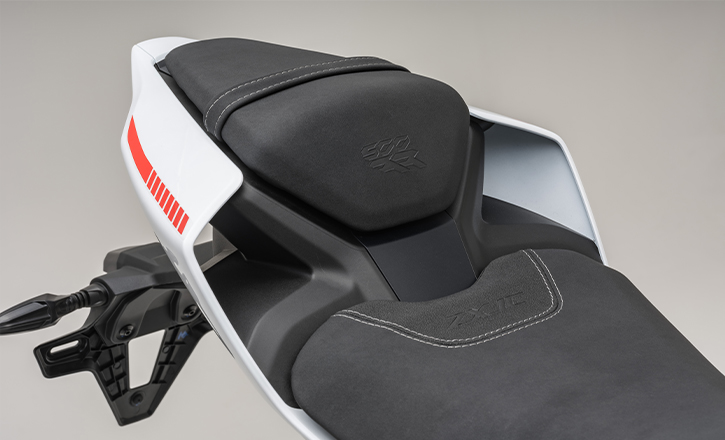

Anti-slip material seat cushion; Hollowed-out floating tailight design
500RR

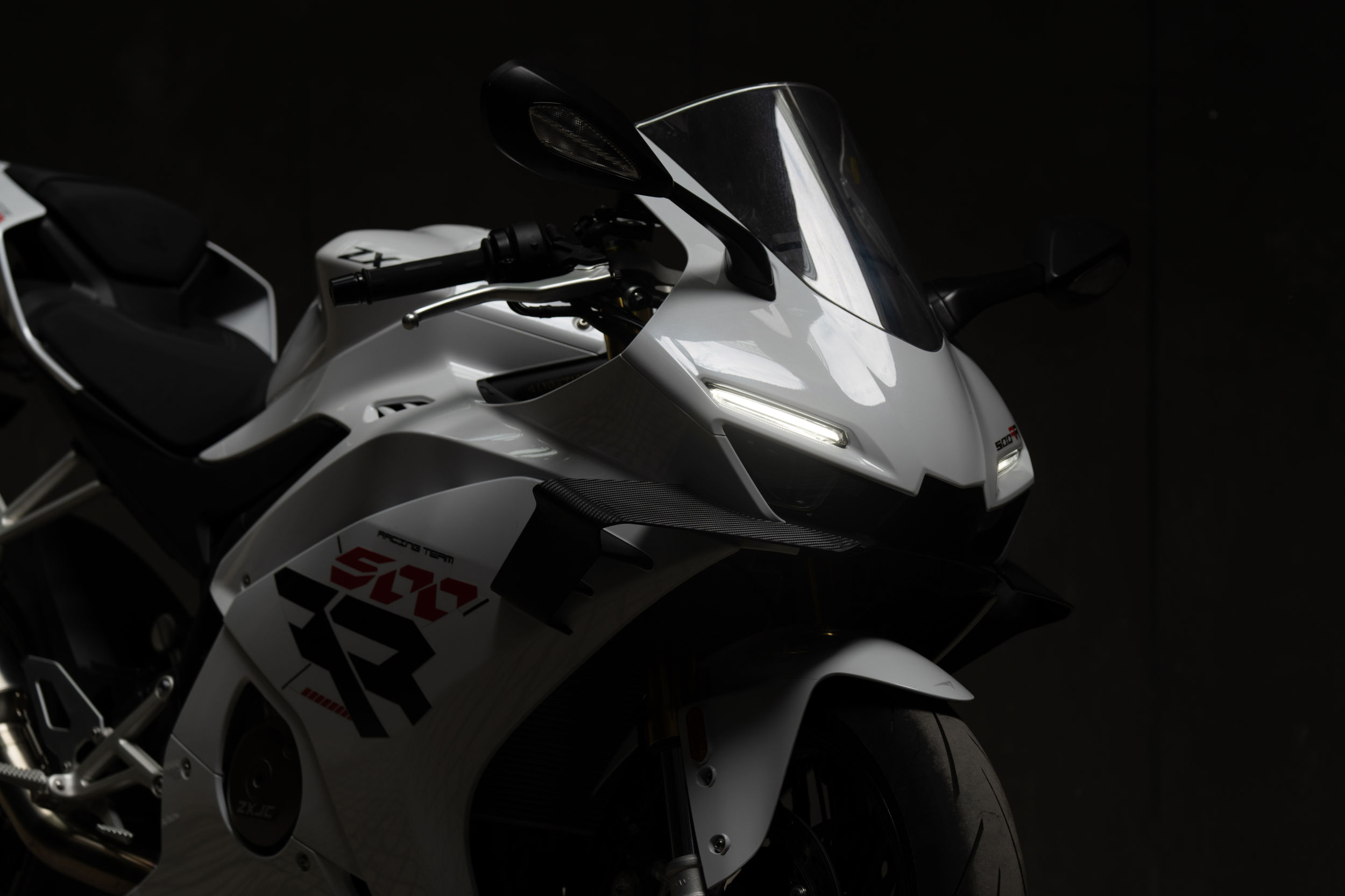

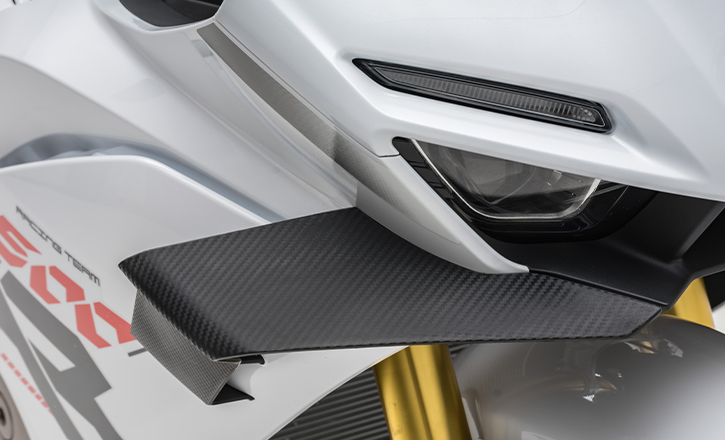

Spoiler and headlight Eyebrow Design
