500F
  • 500F
  • 500F
  • 500F

COLOR

  • red
  • white
  • black
470

Displacement(cc)

54/11000

Max.Power(kW/rpm)

48/9500

Max.Torque(N.m/rpm)

175

Curb Weight(kg)

SPECS
  • 500F
  • ENGINE
  • CHASSIS
  • DIMENSIONS
  • Type 4 inline-cylinder,DOHC,16-valve,liquid-cooled
  • Max. Power/rpm(kW/rpm) 54/11000
  • Max. Torque/rpm(N·m/rpm) 48/9500
  • Displacement(cc) 470
  • Bore × Stroke (mm) 59×43
  • Engine Cycle 4-Stroke
  • Compression Ratio 12:1
  • Fuel delivery BOSCH EFI
  • Frame Integrated Steel Trellis Diamond Frame
  • Rear Swing Arm Normal Swing Arm(Aluminum Alloy)
  • Front Suspension Inverted, Adjustable Damping
  • Tire CST S1
  • Front Suspension 120/70 ZR17
  • Rear Wheel Size 180/55 ZR17
  • Rim Aluminum alloy cast front MT3.5*17 rear MT5.5*17
  • Front Caliper Floating Caliper
  • Front Disc 300mm dual floating disc
  • Rear Caliper 1-piston floating caliper(TAISKO)
  • Rear Disc 220mm single disc
  • Length x Width x Height(mm) 2015×805×1090
  • Wheel base(mm) 1395
  • Seat height(mm) 795
  • Fuel Capacity(L) 15.5
  • Curb weight(kg) 175
  • Dry weight(kg) 165
  • Steering angle(°) 33.5
  • Rake Angle (°) 24.5
500F
500F
500F
500F
500F
500F
500F
500F
PREV
NEXT

* ZXMOTO models may have different specifications to comply with local regulations, and may be modified to meet specific demands in a particular region.

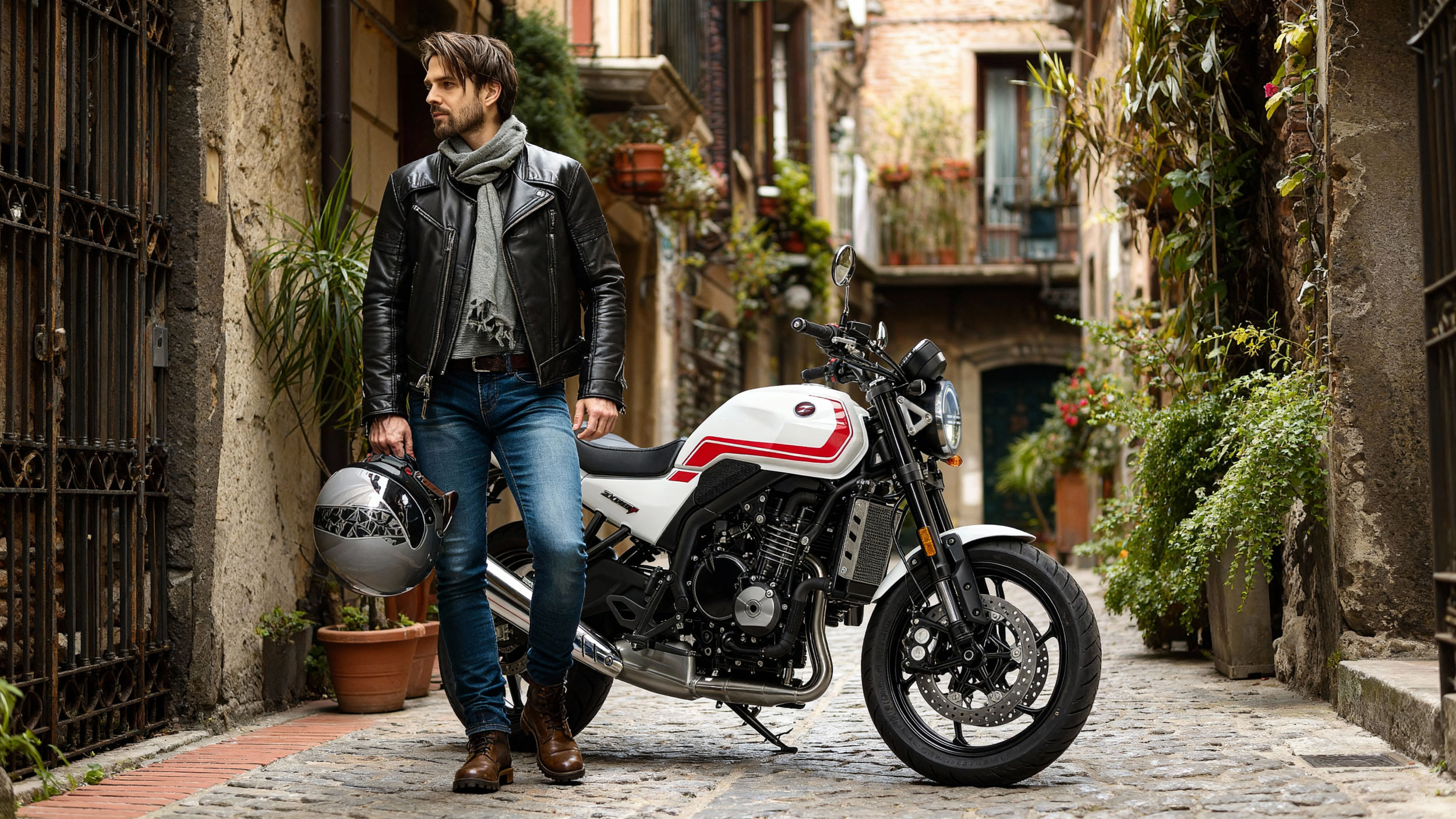

Timeless Design, Modern Comfort
Timeless Design, Modern Comfort

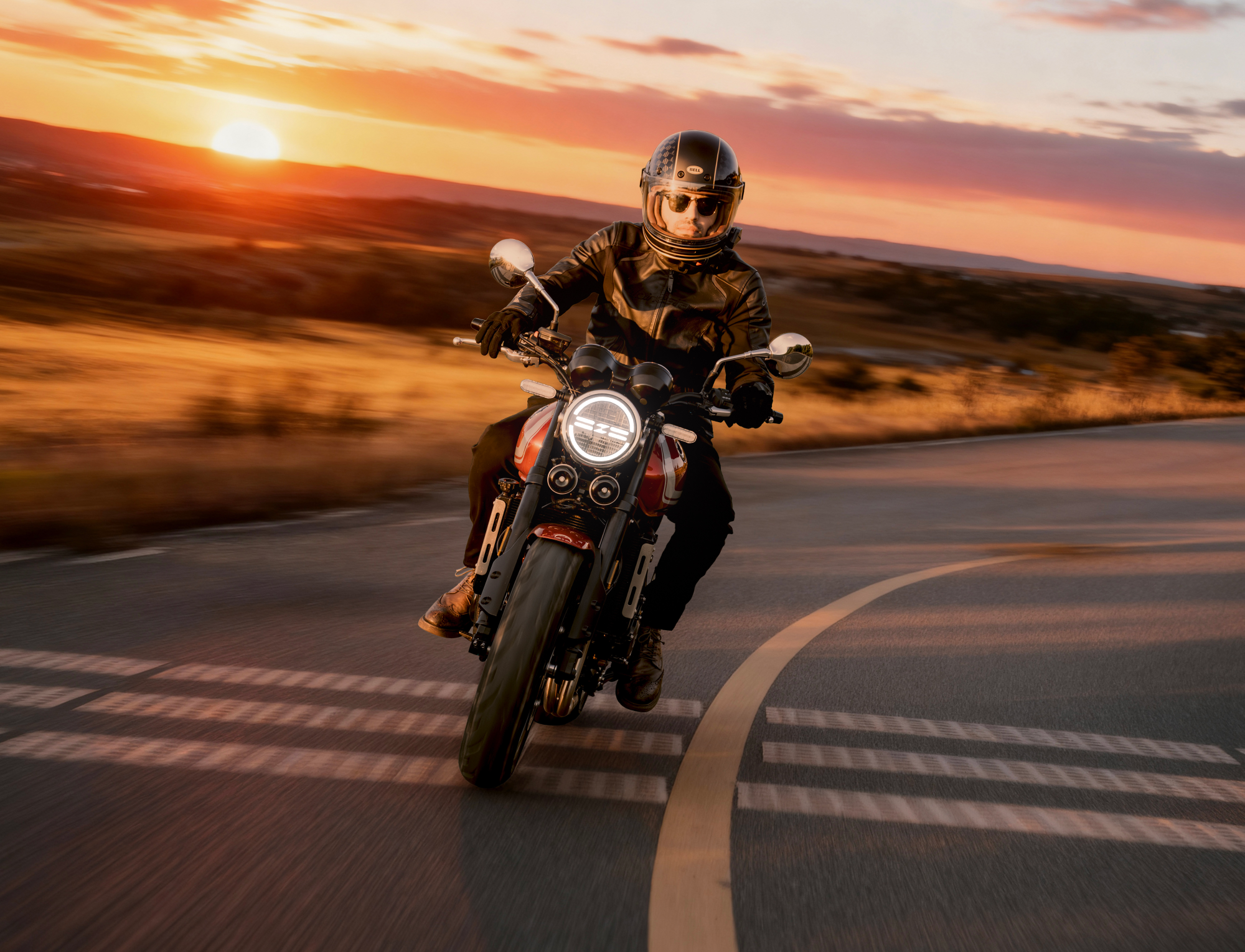

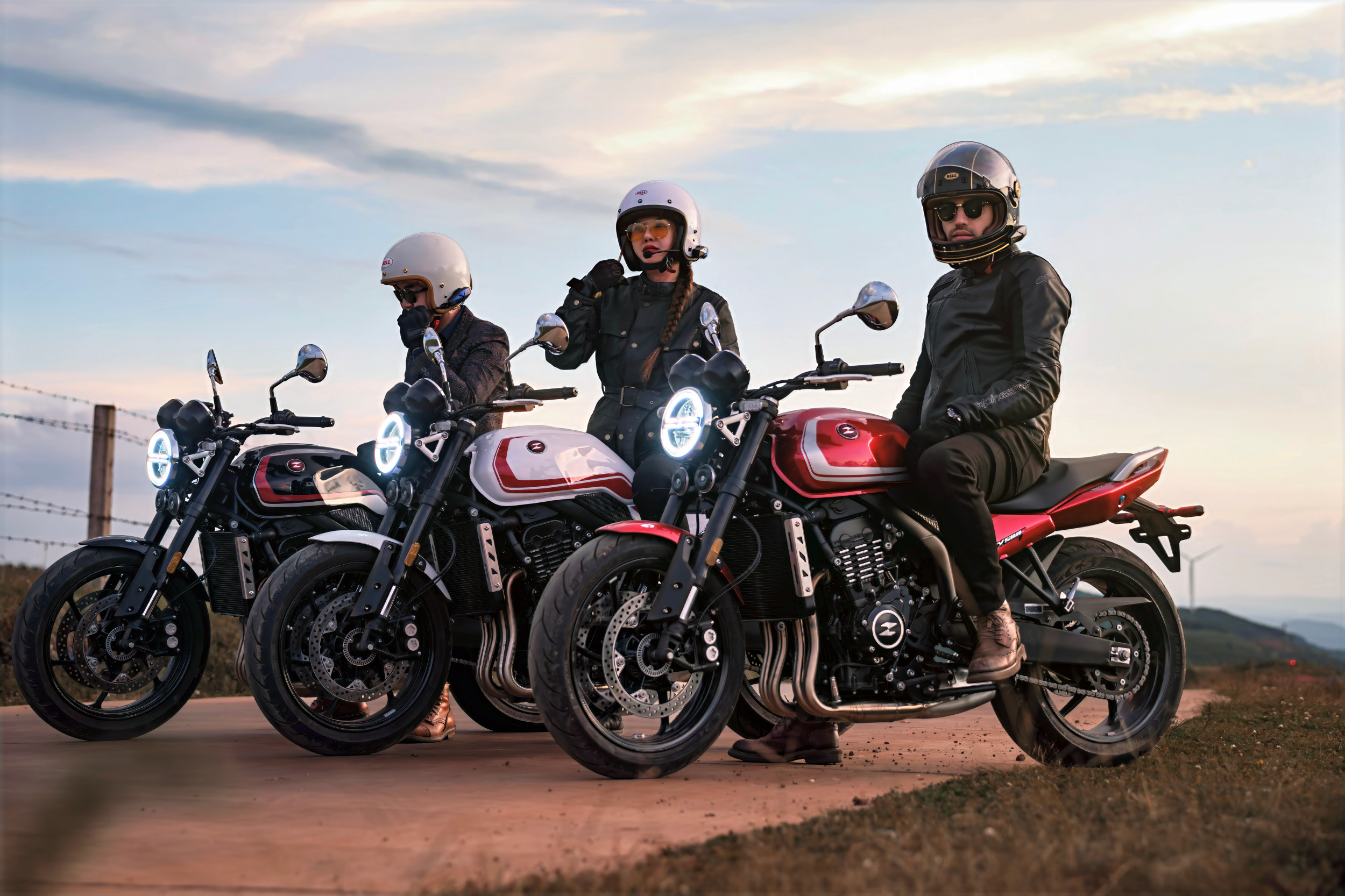

  • The 500F's aesthetic is a direct tribute to iconic Japanese naked bikes, featuring a timeless round LED headlight and a clean tail section. Its thoughtfully designed ergonomics are highlighted by a comfortably padded seat and a relaxed riding posture that feels natural and relaxed. The low, 795mm seat height instills confidence at a stop, making it an exceptionally approachable machine for both new and seasoned riders.

Timeless Design, Modern Comfort

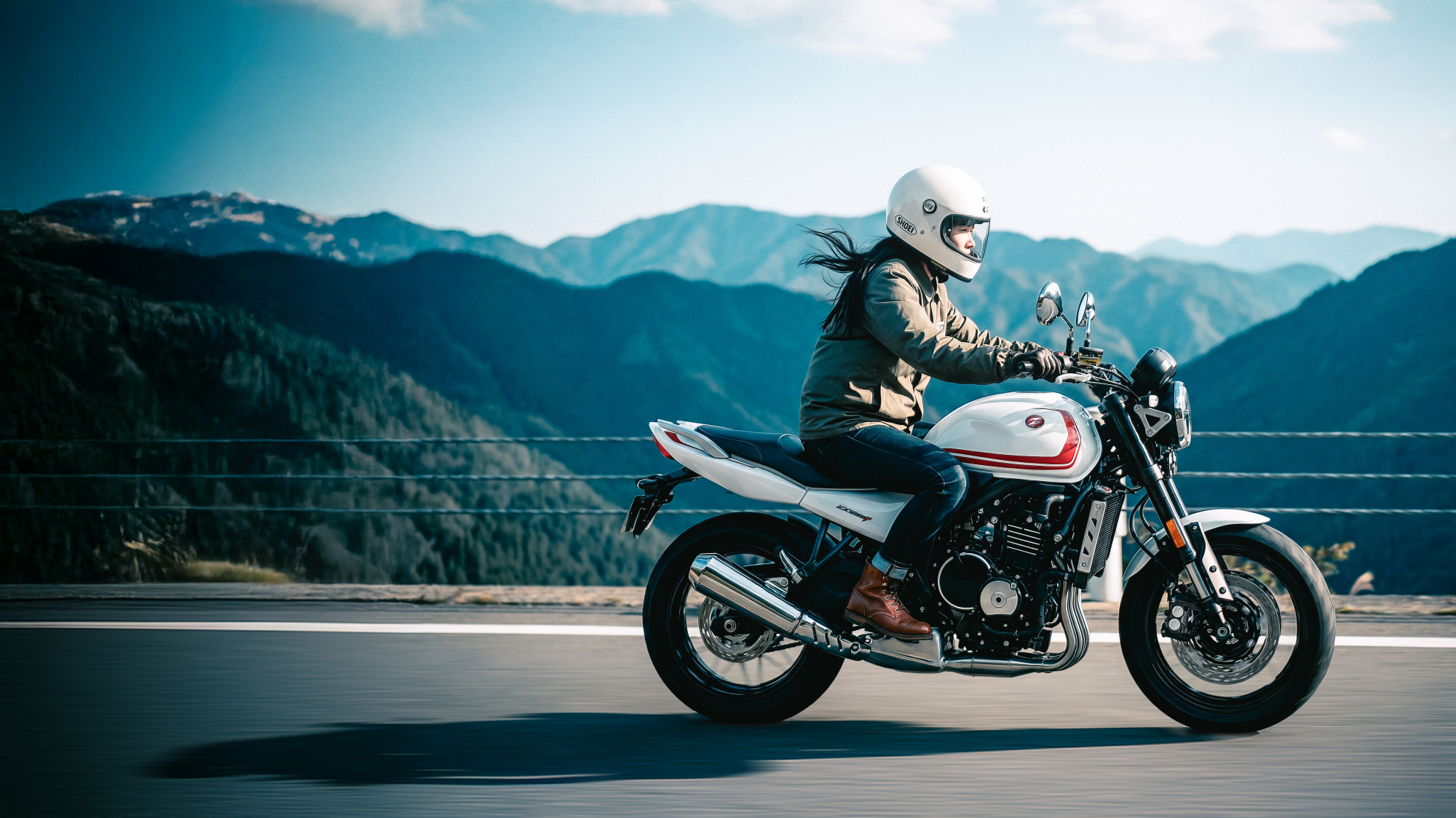

Refined Four-Cylinder Heart
Refined Four-Cylinder Heart
  • Central to its appeal is the smooth, 470cc inline-four engine, renowned for its satisfying and potent exhaust note. This characterful powerplant is complemented by a comprehensive safety suite, including dual-channel ABS and switchable traction control. The fully adjustable inverted front forks and capable braking system work in harmony to provide precise handling and instill a deep sense of confidence on the road.

Refined Four-Cylinder Heart

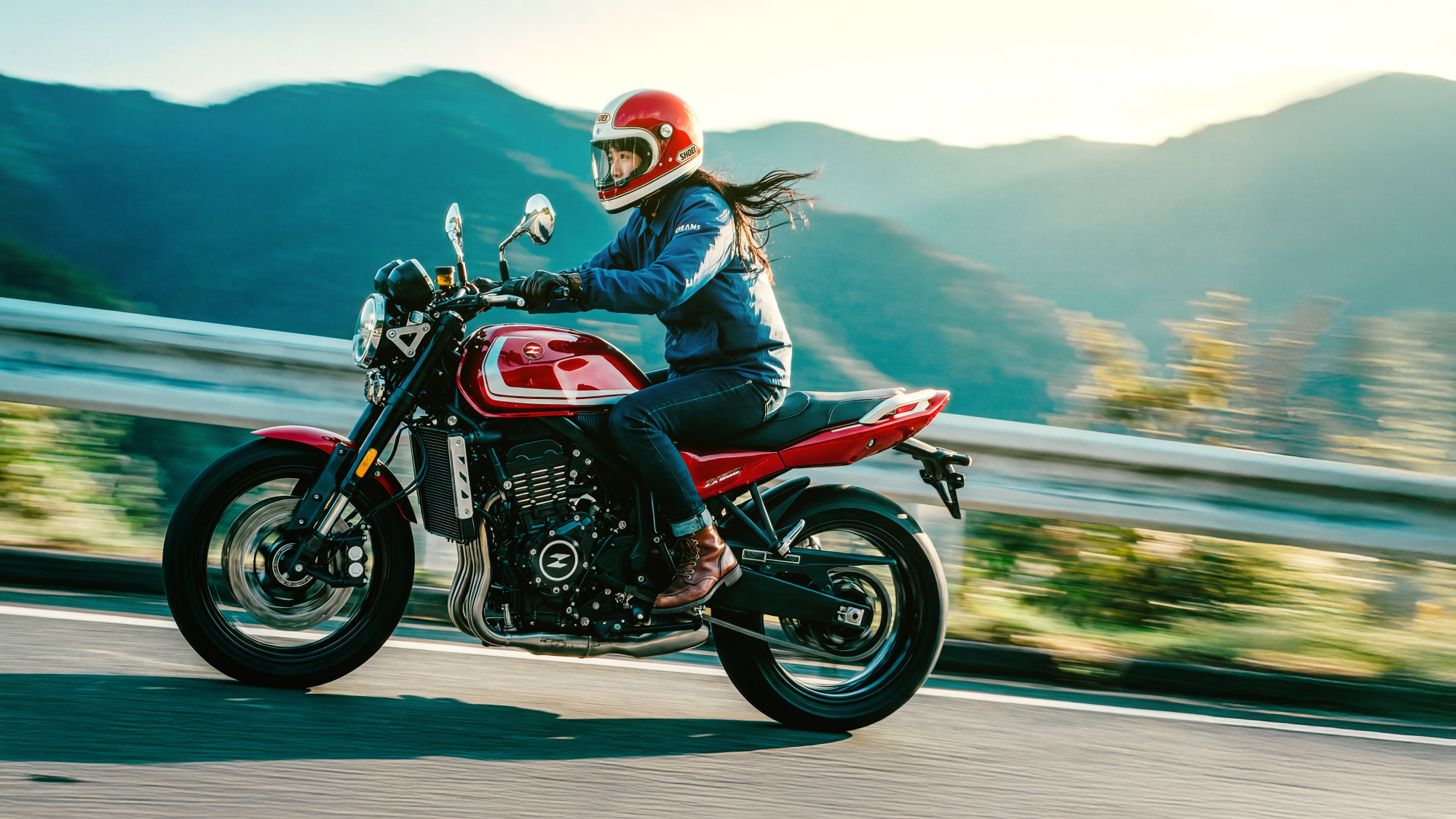

Effortless and Engaging Performance
Effortless and Engaging Performance
  • Tailored for real-world enjoyment, with a torque-rich delivery that makes city riding effortless and highway overtaking brisk. The engine's flexible nature is matched by its willingness to rev, producing an exhilarating soundtrack that enhances the riding experience. Combined with a comfortable, confidence-inspiring chassis and a practical 350km+ range, the 500F proves to be a versatile companion for everything from daily commutes to leisurely weekend tours.

Effortless and Engaging Performance
DETAILS
500F

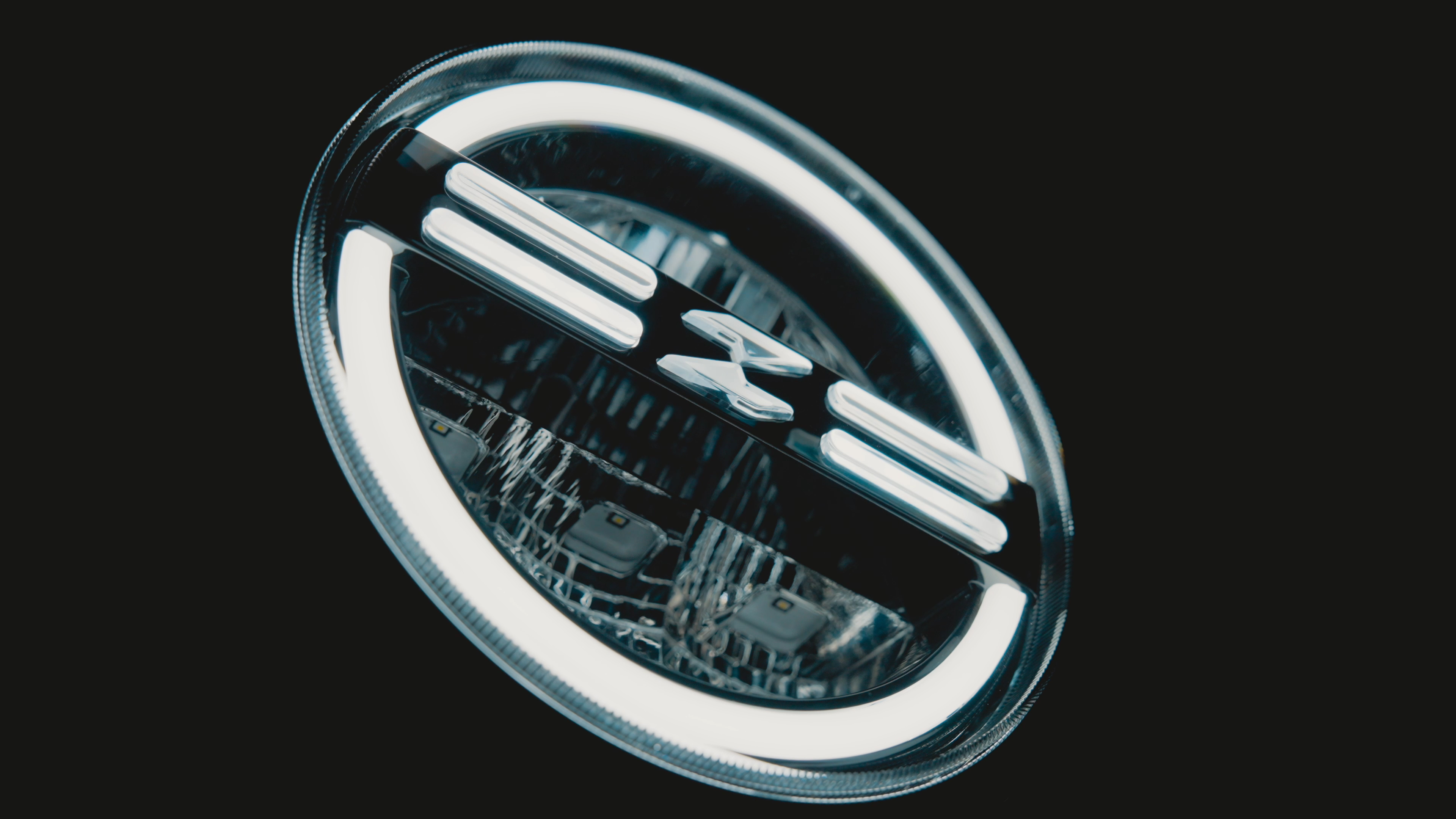

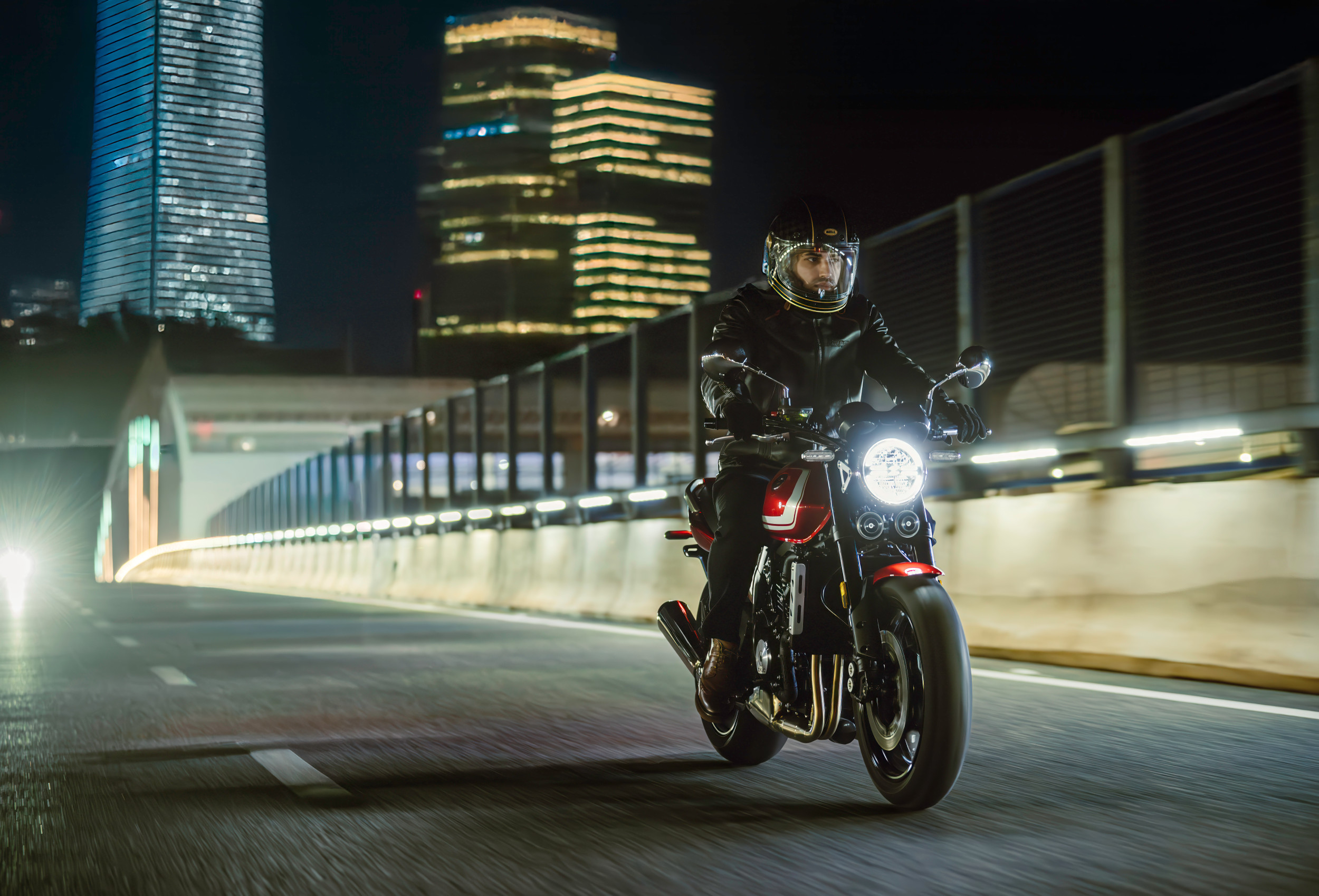

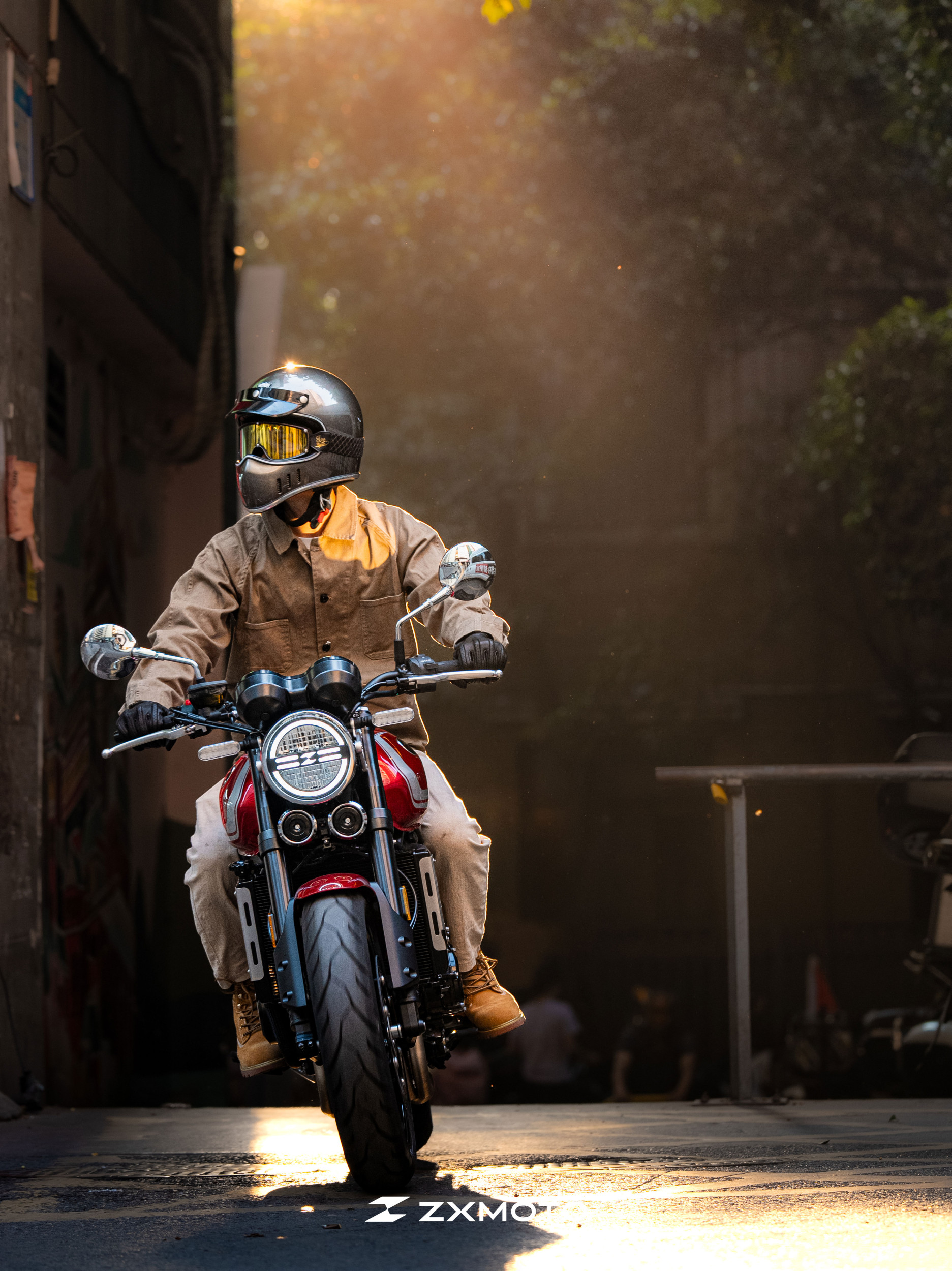

Classic round headlight with a built-in LED module.
500F

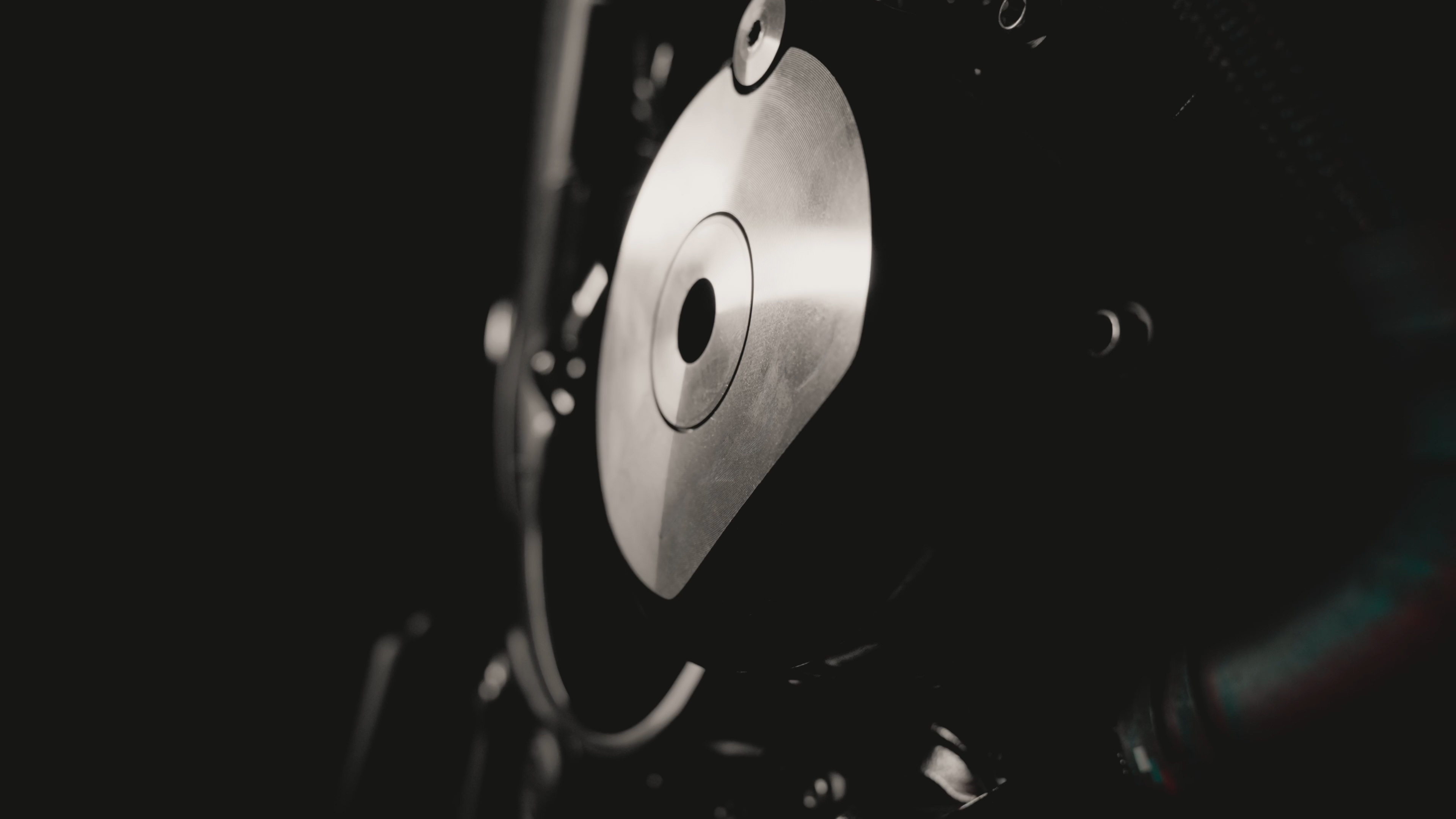

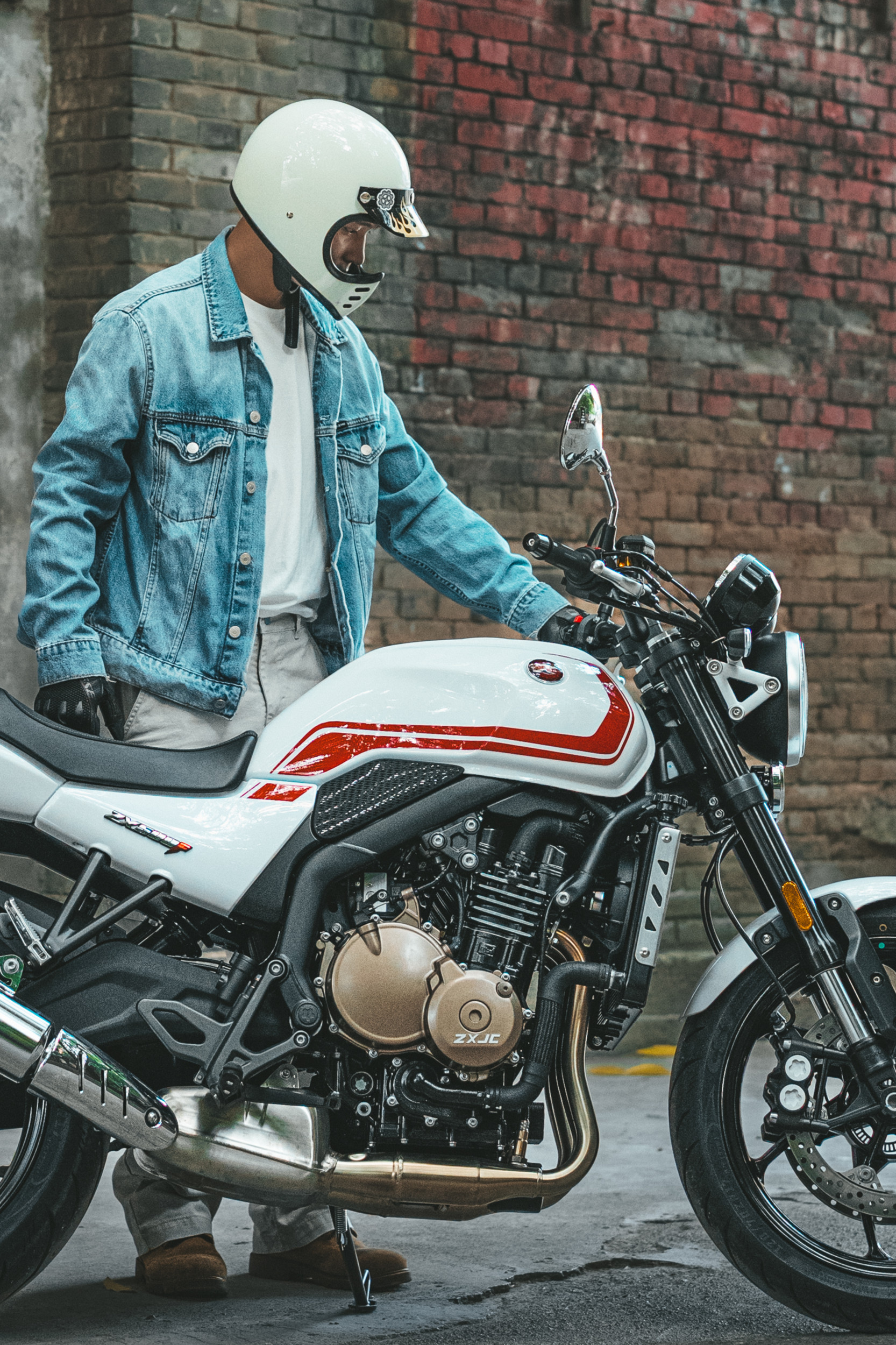

Engine polished finish.
500F

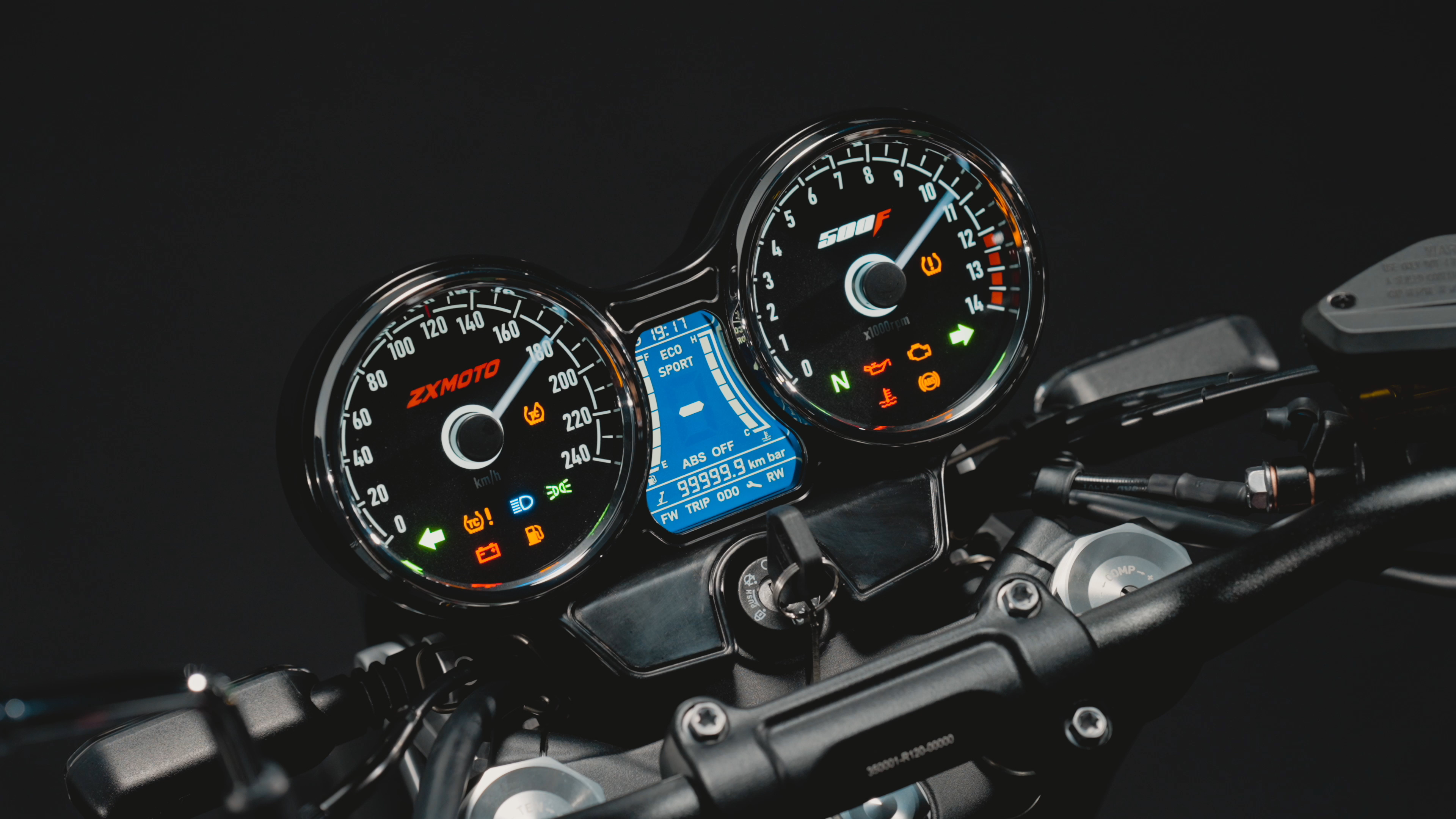

Classic dual round electronic pointer instrument cluster.
